Ebara EVMSG 20 Vertical Multistage Pumps (Max 500LPM)

EBARA’s new EVMSG vertical multistage pumps are manufactured to the highest standards of quality, and achieve reliable operating performance by means of strict technical evaluation criteria and control programs that involve the whole manufacturing process.

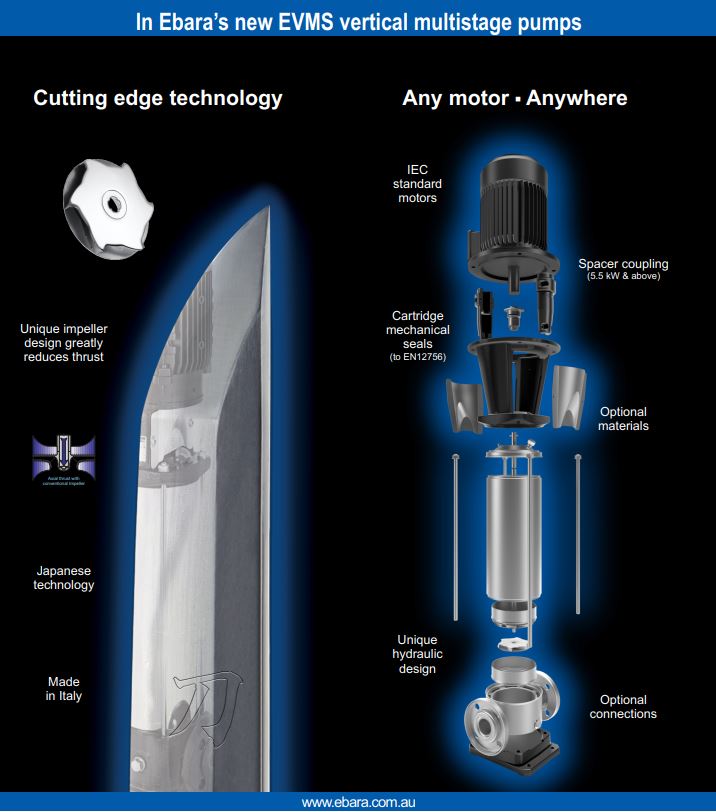

Ebara has rethought  the hydraulic design used in multistage pumps. Utilising the latest in computational fluid dynamics and design, followed by rigorous testing, Ebara has developed  a unique impeller design that offer solutions and value to the customer.

The optimised shape of the Shurricane maintains high efficiencies and very significantly reduces the axial thrust -  meaning that any standard IEC motor can be used and  bearing life is improved

FEATURES

• Impellers: 304 stainless steel
• Intermediate casings: 304 stainless steel
• Outer casing: 304 stainless steel
• Bottom casing: Cast iron
• Top casing: 304 stainless steel
• Shaft: 304 or 329 stainless steel (depending on model)
• Motor Bracket: Cast iron
• Mechanical seal: Silicon Carbide/Carbon/EPDM
• Liner Rings: PPS & 304 SS
• O-Rings: EPDM

APPLICATIONS

• Industrial, commercial and agricultural applications
• Water treatment plants (reverse osmosis, filtration)
• Boiler feed - Irrigation systems - Fire fighting
• Pumping of hot or cold water for HVAC systems
• For the pumping or boosting of water in general

EVMSG Range are equivalent to Grundfos CR Range
